Decision Tree

Code

import autosklearn.classification
import sklearn
from sklearn.tree import DecisionTreeClassifier, DecisionTreeRegressor
import warnings
import graphviz
import pandas as pd
from dtreeviz.models.shadow_decision_tree import ShadowDecTree
from dtreeviz.models.sklearn_decision_trees import ShadowSKDTree
from dtreeviz import trees
from sklearn import tree
import  matplotlib.pyplot  as  plt
from matplotlib.pyplot import figure
from PIL import Image
from IPython.display import display, HTML, SVG
from sklearn.model_selection import KFold
from sklearn.model_selection import cross_val_score
import numpy as np
from sklearn.model_selection import train_test_split
from sklearn.model_selection import GridSearchCV
from plotnine import *
from sklearn.inspection import plot_partial_dependence, partial_dependence
from sklearn.metrics import confusion_matrix, classification_report, roc_curve
import seaborn as sns
from sklearn.pipeline import Pipeline
import pickle
%matplotlib inline

Code

!pip install TPOT

Code

from tpot import TPOTClassifier
from sklearn.model_selection import train_test_split
from sklearn.preprocessing import LabelEncoder
from tpot.config import classifier_config_dict

Code

X_train, X_test, y_train, y_test = train_test_split(digits.data, digits.target,
                                                    train_size=0.75, test_size=0.25, random_state=42

Don’t include: * plate ID, identifies each plate in SDSS * Unique ID used for optical spectroscopic objects (this means that 2 different observations with the same spec_obj_ID must share the output class) * Field number to identify each field * Camera column to identify the scanline within the run * Rerun Number to specify how the image was processed * Run Number used to identify the specific scan * Object Identifier, the unique value that identifies the object in the image catalog used by the CAS * MJD = Modified Julian Date, used to indicate when a given piece of SDSS data was taken

Code

df = pd.read_csv("star_classification.csv")
#just manually remove all ID-type columns, and class
features = [
 'alpha',
 'delta',
 'u',
 'g',
 'r',
 'i',
 'z',
 'redshift']
X = df[features]
y = df['class']
le = LabelEncoder()
y = le.fit_transform(y)

Code

tpot_config = {
    'sklearn.tree.DecisionTreeClassifier': {
        'criterion': ["gini", "entropy"],
        'max_depth': range(1, 11),
        'min_samples_split': range(2, 21),
        'min_samples_leaf': range(1, 21)
    }
}

Code

tpot_config['tpot.builtins.FeatureSetSelector'] = {
    'subset_list': ['https://raw.githubusercontent.com/EpistasisLab/tpot/master/tests/subset_test.csv'],
    'sel_subset': [0,1] # select only one feature set, a list of index of subset in the list above
    #'sel_subset': list(combinations(range(3), 2)) # select two feature sets
}

Code

X_train, X_test, y_train, y_test = train_test_split(X, y,
                                                    train_size=0.75, test_size=0.25, random_state=42)

Code

tpot = TPOTClassifier(config_dict=tpot_config, generations=5, population_size=50, verbosity=2, random_state=42,max_time_mins = 5)

Code

tpot.fit(X_train, y_train)


5.01 minutes have elapsed. TPOT will close down.
TPOT closed during evaluation in one generation.
WARNING: TPOT may not provide a good pipeline if TPOT is stopped/interrupted in a early generation.


TPOT closed prematurely. Will use the current best pipeline.

Best pipeline: DecisionTreeClassifier(DecisionTreeClassifier(input_matrix, criterion=entropy, max_depth=10, min_samples_leaf=19, min_samples_split=18), criterion=entropy, max_depth=3, min_samples_leaf=5, min_samples_split=10)

TPOTClassifier(config_dict={'sklearn.tree.DecisionTreeClassifier': {'criterion': ['gini',
                                                                                  'entropy'],
                                                                    'max_depth': range(1, 11),
                                                                    'min_samples_leaf': range(1, 21),
                                                                    'min_samples_split': range(2, 21)},
                            'tpot.builtins.FeatureSetSelector': {'sel_subset': [0,
                                                                                1],
                                                                 'subset_list': ['https://raw.githubusercontent.com/EpistasisLab/tpot/master/tests/subset_test.csv']}},
               generations=5, max_time_mins=5, population_size=50,
               random_state=42, verbosity=2)

Code

print(tpot.score(X_test, y_test))

0.97568

Code

tpot.export("dt_pipeline.py")

Code

#run pipeline

Code

clf = DecisionTreeClassifier(criterion="entropy", max_depth=3, min_samples_leaf=5, min_samples_split=10)

Code

clf.fit(X_train, y_train)
y_pred = clf.predict(X_test)

Code

print("Accuracy score", sklearn.metrics.accuracy_score(y_test, y_pred))

Accuracy score 0.95088

Code

print(classification_report(y_test, y_pred))

              precision    recall  f1-score   support

           0       0.94      0.98      0.96     14895
           1       0.95      0.79      0.86      4769
           2       1.00      1.00      1.00      5336

    accuracy                           0.95     25000
   macro avg       0.96      0.93      0.94     25000
weighted avg       0.95      0.95      0.95     25000

Code

matrix = confusion_matrix(y_pred, y_test)
matrix = matrix / matrix.astype(np.float).sum(axis=1)
cm = sns.heatmap(matrix, square=True, annot=True, cbar=False,
            xticklabels=['GALAXY', 'STAR', 'QSO'], yticklabels=['GALAXY', 'STAR', 'QSO'])
plt.xlabel('Truth')
plt.ylabel('Predicted')
plt.title("")
plt.show()

/usr/local/lib/python3.7/dist-packages/ipykernel_launcher.py:2: DeprecationWarning: `np.float` is a deprecated alias for the builtin `float`. To silence this warning, use `float` by itself. Doing this will not modify any behavior and is safe. If you specifically wanted the numpy scalar type, use `np.float64` here.
Deprecated in NumPy 1.20; for more details and guidance: https://numpy.org/devdocs/release/1.20.0-notes.html#deprecations

Code

#initialize shadow tree
sk_dtree = ShadowSKDTree(clf, X, y, features, "class", ['GALAXY', 'STAR', 'QSO'])

Code

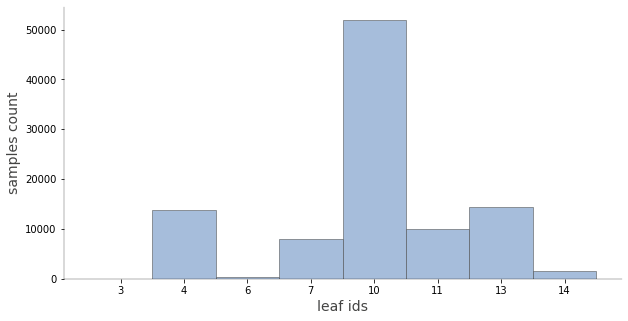

trees.viz_leaf_samples(sk_dtree)

[WARNING] [2022-08-09 23:43:03,900:matplotlib.font_manager] findfont: Font family ['Arial'] not found. Falling back to DejaVu Sans.

Code

trees.dtreeviz(sk_dtree)

[WARNING] [2022-08-09 23:43:50,124:matplotlib.font_manager] findfont: Font family ['Arial'] not found. Falling back to DejaVu Sans.
[WARNING] [2022-08-09 23:43:50,353:matplotlib.font_manager] findfont: Font family ['Arial'] not found. Falling back to DejaVu Sans.
[WARNING] [2022-08-09 23:43:50,369:matplotlib.font_manager] findfont: Font family ['Arial'] not found. Falling back to DejaVu Sans.

/usr/local/lib/python3.7/dist-packages/numpy/core/fromnumeric.py:3208: VisibleDeprecationWarning: Creating an ndarray from ragged nested sequences (which is a list-or-tuple of lists-or-tuples-or ndarrays with different lengths or shapes) is deprecated. If you meant to do this, you must specify 'dtype=object' when creating the ndarray.
  return asarray(a).size
/usr/local/lib/python3.7/dist-packages/matplotlib/cbook/__init__.py:1376: VisibleDeprecationWarning: Creating an ndarray from ragged nested sequences (which is a list-or-tuple of lists-or-tuples-or ndarrays with different lengths or shapes) is deprecated. If you meant to do this, you must specify 'dtype=object' when creating the ndarray.
  X = np.atleast_1d(X.T if isinstance(X, np.ndarray) else np.asarray(X))

[WARNING] [2022-08-09 23:43:51,615:matplotlib.font_manager] findfont: Font family ['Arial'] not found. Falling back to DejaVu Sans.

Code

trees.dtreeviz(sk_dtree, fancy=False)

Code

trees.dtreeviz(sk_dtree, show_just_path=True, X = X.iloc[10])

/usr/local/lib/python3.7/dist-packages/numpy/core/fromnumeric.py:3208: VisibleDeprecationWarning: Creating an ndarray from ragged nested sequences (which is a list-or-tuple of lists-or-tuples-or ndarrays with different lengths or shapes) is deprecated. If you meant to do this, you must specify 'dtype=object' when creating the ndarray.
  return asarray(a).size
/usr/local/lib/python3.7/dist-packages/matplotlib/cbook/__init__.py:1376: VisibleDeprecationWarning: Creating an ndarray from ragged nested sequences (which is a list-or-tuple of lists-or-tuples-or ndarrays with different lengths or shapes) is deprecated. If you meant to do this, you must specify 'dtype=object' when creating the ndarray.
  X = np.atleast_1d(X.T if isinstance(X, np.ndarray) else np.asarray(X))

Code

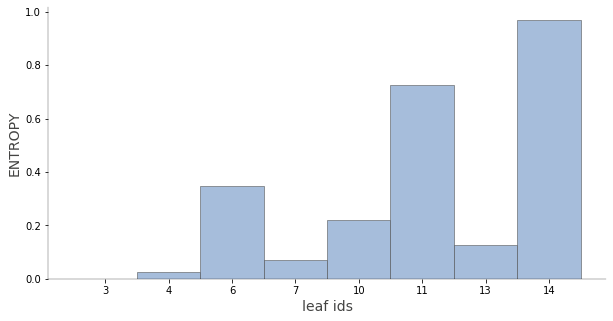

trees.viz_leaf_criterion(clf)

Code

trees.describe_node_sample(sk_dtree, node_id=10)

	alpha	delta	u	g	r	i	z	redshift
count	51935.000000	51935.000000	51935.000000	51935.000000	51935.000000	51935.000000	51935.000000	51935.000000
mean	181.711450	24.074552	22.346448	20.536128	19.210662	18.515720	18.135271	0.355549
std	91.416751	19.351312	2.327826	2.027503	1.723310	1.536114	1.502448	0.203380
min	0.005528	-12.364701	13.897990	12.679020	11.746640	11.299560	10.897380	0.004285
25%	134.238282	6.283251	20.344025	18.611765	17.660465	17.226380	16.926995	0.145027
50%	187.270126	22.799320	22.584700	21.159340	19.592490	18.855040	18.436680	0.387110
75%	231.975632	38.773742	24.060300	22.144885	20.597755	19.655370	19.214630	0.534749
max	359.994125	74.459854	29.325650	29.862580	29.571860	29.889210	29.383740	0.685050

Code

pred_path = X.iloc[10]
pred_path

alpha       328.092076
delta        18.220310
u            25.771630
g            22.520420
r            20.638840
i            19.780710
z            19.057650
redshift      0.459596
Name: 10, dtype: float64

Code

print(trees.explain_prediction_path(clf, pred_path, feature_names=features, explanation_type="plain_english"))

0.0 <= redshift  < 0.69

Code

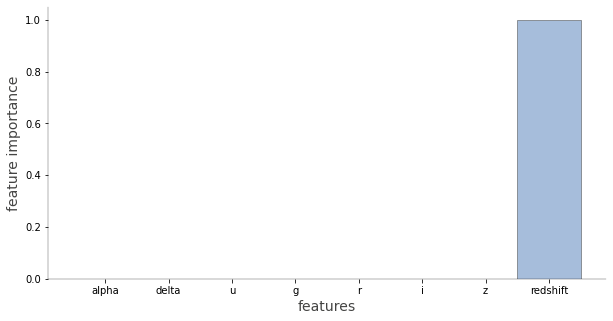

trees.explain_prediction_path(clf, pred_path, feature_names=features, explanation_type="sklearn_default")

<matplotlib.axes._subplots.AxesSubplot at 0x7f5a40719c90>
